BaoTa Series 50-1000T Injection Molding Robots
High‑speed 3‑axis and 5‑axis servo robotic arms for horizontal injection molding machines from 50 to 1,000 tons. Single‑section and telescopic vertical arms available for diverse mold layouts.
Core advantages:
- Speed: linear motion up to 3 m/s for fast cycle times
- Precision: ±0.05 mm repeatability for accurate part removal and insertion
- Efficiency: energy‑saving AC servo drives with low maintenance
- Easy control: multi‑language open‑architecture system for flexible programming

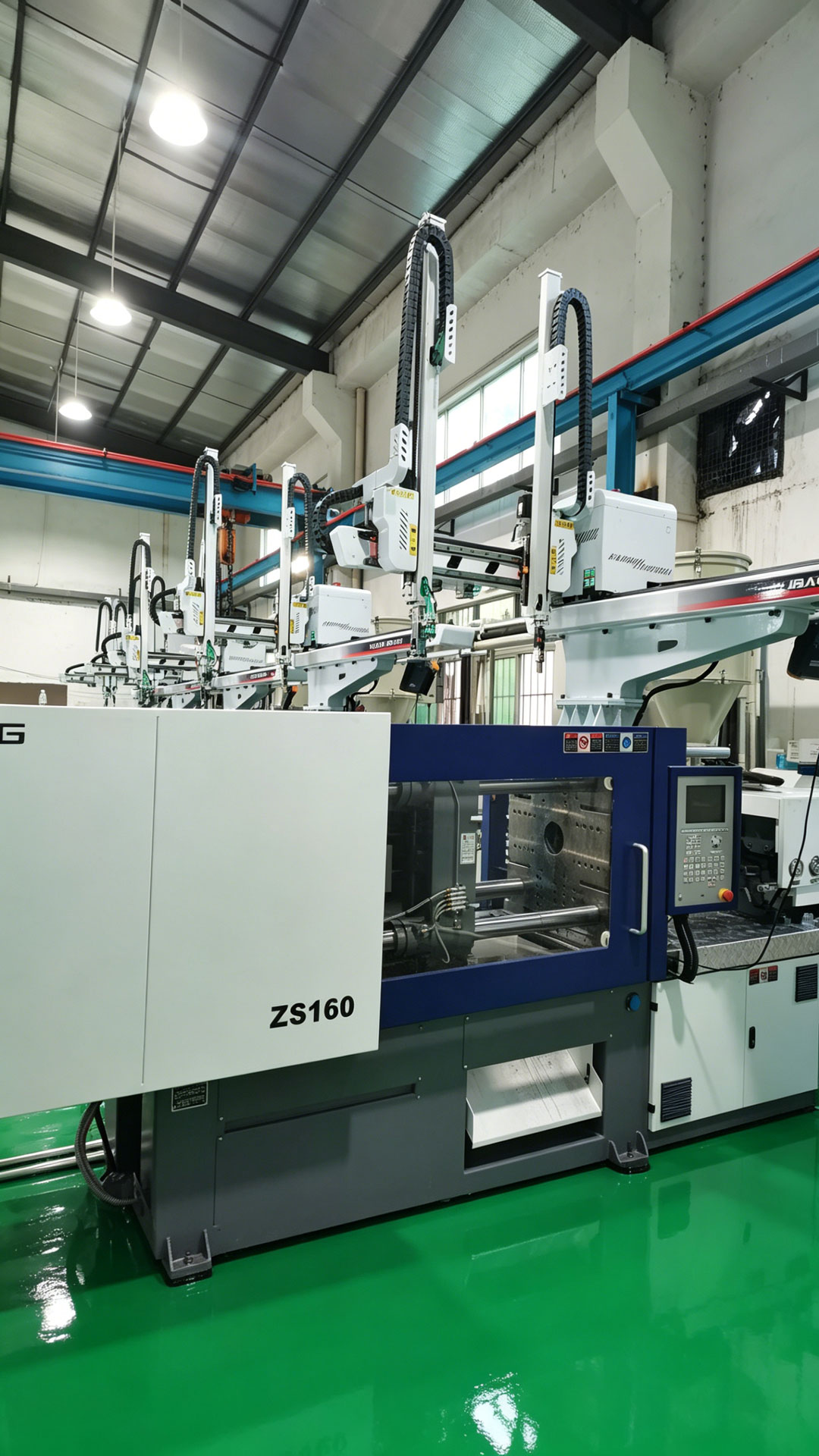

Trusted in consumer electronics, home appliances, toys and daily‑use plastic products worldwide.
Model Series: YBB ID/IS/WD/WS/S3/S5
Available Models: 07/08/09/10/11/12/13/15/17/18/20
W: Telescopic stage
I: Single stage
D: Product arm + runner arm
S: Single arm (Product arm)
S3: Three-axis servo (Traverse-Y± / Vertical-Z± / Crosswise-X±)
S5: Five-axis servo (Traverse-Y± / Vertical-Z± / Crosswise-X± / A axis / B axis / C axis as optional)
Recommended Industrial Robots & Automation Solutions
Explore YUBAO’s leading range of injection molding robots, collaborative arms, and automation accessories designed to boost your manufacturing productivity.
Specifications & Parameters
| Model | A | B | C | D | E | F |
| 07 | 1840 | 1940 | 1460 | 1390 | 770 | 1230 |
| 08 | 1840 | 1940 | 1580 | 1390 | 770 | 1230 |
| 09 | 2000 | 2100 | 1700 | 1510 | 890 | 1390 |
| Model | A | B | C | D | E | F |
| 07 | 1840 | 1940 | 1170 | 1370 | 400 | 1280 |
| 08 | 1840 | 1940 | 1230 | 1370 | 400 | 1280 |
| 10 | 2000 | 2100 | 1290 | 1490 | 520 | 1450 |
| 12 | 2200 | 2300 | 1410 | 1510 | 640 | 1650 |
| 13 | 2300 | 2400 | 1470 | 1510 | 640 | 1750 |
| 15 | 3000 | 3500 | 2050 | 2240 | 820 | 2180 |
| 18 | 3500 | 4000 | 2300 | 2240 | 900 | 2650 |
Performance Advantages & Optional Functions
Reinforced main arm & base with thickened structural design boosts overall rigidity by 20% for stable long-term operation.
High-load precision ensures ±0.05 mm repeatability even under heavy-duty working conditions.
Fast & precise motion delivers instantaneous linear speeds up to 3 m/s while maintaining ±0.05 mm positioning repeatability.
Equipped with 750W high-power servo motor, increasing load capacity by 20% for heavy-duty handling tasks.
Optimized low-inertia section design reduces vibration amplitude by 20% during operation, ensuring reliable continuous long-term running.
Compatible with standard injection molding machine signals and Euro-standard quick-connect ports; significantly reduces equipment installation time.
Detects the actual open and closed positions of the mold and automatically compensates for the robot’s travel, reducing alarms and manual adjustments caused by inaccurate mold positioning.
Supports multiple languages; the open-source operating system allows for quick and easy editing and modification of programs.
24/7 support, with user manuals and video tutorials available.
Injection molding robots support Ethernet interfaces, enabling real-time remote monitoring and management through data acquisition.
Real-time tracking and analysis of production data, along with comprehensive monitoring of robotic arm operation throughout the entire process, enable efficient production management, timely troubleshooting, and unmanned intelligent production without the need for on-site supervision.
The high-capacity I/O board supports up to 12 suction cup channels, 12 gripper channels, 12 pneumatic shearing channels, conveyor line synchronization control channels, and auxiliary interfaces such as mold release agent spraying channels simultaneously.
This enables the robot to connect multiple suction cups, grippers, and auxiliary devices at the same time, allowing it to complete complex grasping, handling, and loading tasks in a single operation.
Designed for two critical industrial application scenarios:
- High-load operating conditions with stable positioning
- Non-standard insertion and embedding operations
Maintains accurate positioning under heavy loads to avoid position deviation; delivers precise alignment for non-standard tasks to ensure operation accuracy and consistency.
Dedicated programming commands for non-standard and customized automation needs, ideal for complex production scenarios:
- Custom motion path planning and editing
- Specialized gripping logic definition and setting
- Flexible adaptation to unique customer production processes
High customization allows the robot series to flexibly meet various specialized and personalized industrial production requirements.
Dedicated options designed for non-standard and customized automation demands:
- Pneumatic Scissors: Pneumatic scissors can be installed for gate cutting.
- Finished Product Inspection: Sensors can be installed on the conveyor belt to prevent collisions between products.
- A/C-Axis Servo Drive: Both ends of the rotation mechanism can be driven by AC servo motors, supporting free rotation within 180° (A-axis) and 360° (C-axis).
- Mold Position Detection: Real-time center plate position detection prevents the sprue arm from colliding with the center plate.
- Automatic Timed Lubrication: System automatically lubricates once operational time reaches a preset threshold.
- Quick End-Effector Replacement: Allows rapid disconnection and change of the end-effector with the push of a button.
- Additional Suction & Gripping Devices: Expandable up to 12 suction cup channels and 12 gripper channels.
